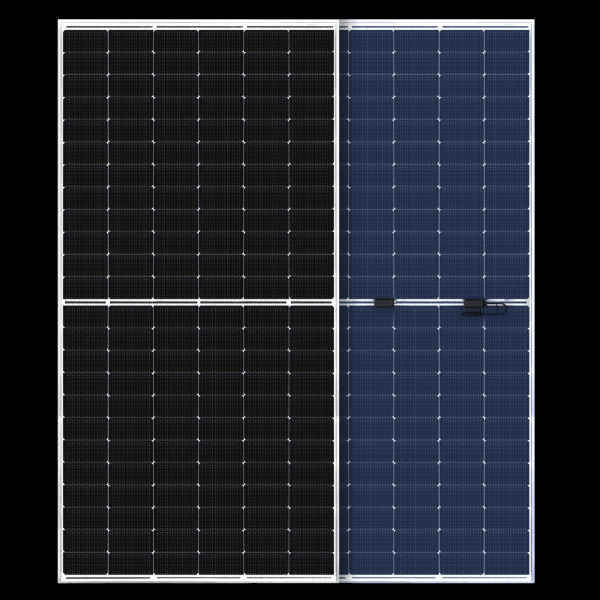

Rayzon solar panels

Name: Rayzon solar panels
Brand: G The Gread Solar Energy Water Pump Service
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Rayzon solar panels Specification

Product Type
Polycrystalline Solar Panel

Material
Polycrystalline Silicon

Number of Cells
72 cells

Operating Temperature
-40C to +85C

Max Voltage
45.32 V

Max System Voltage
1000 V (DC)

Panel Efficiency
18.50%

Cable Length
1 meter

Number Of Diodes
3

Maximum Snow Load
5400 Pa

Size
72 cells

Dimension (L*W*H)
1960mm x 990mm x 40mm

Weight
22.5 kg

Color
Blue & Silver

Current at Maximum Power (Imp)
8.68 A

Glass Type
3.2mm Tempered Glass

Open Circuit Voltage (Voc)
47.6 V

Short Circuit Current (Isc)
9.23 A

Frame Material
Anodized Aluminium Alloy

Nominal Power Output
330 W

Front Glass Transmittance
>91%

Module Efficiency
17.00% - 18.50%

Junction Box Protection
IP67 Rated

Rayzon solar panels Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1000 Units Per Week

Delivery Time
3-4 Days

About Rayzon solar panels

Discover the masterful engineering behind Rayzon solar panels, a top-ranking solution now available in our Last Chance Clearance event. Crafted with an anodized aluminium alloy frame and elite 3.2mm tempered glass, these panels promise durability and superior performance. With impressive module efficiencies from 17% to 18.5% and cost-effective energy output at 330 W, Rayzon delivers reliability in all conditions. Benefit from advanced IP67-rated junction box protection, high snow load resistance, and optimal polycrystalline silicon technology-making Rayzon the smart choice for exporters, manufacturers, suppliers, and traders across India.

Effective Applications and Easy Usage of Rayzon Solar Panels

Rayzon solar panels are designed for straightforward integration into both residential and commercial setups. Their robust polycrystalline build ensures optimal energy capture when installed facing direct sunlight. They are ideal for rooftop installations, solar farms, and remote power applications. Users can maximize efficiency by connecting panels as per the system requirements, utilizing the provided cables. Suitable for daily electricity generation, Rayzon panels cater perfectly to both large-scale and decentralized power needs.

Order Processing and Payment Terms for Rayzon Solar Panels

Enjoy premium service and a smooth order processing experience when purchasing Rayzon solar panels. We offer transparent valuation, competitive pricing, and flexible payment terms such as advance payment and letter of credit. Sample units are available for product assessment before bulk ordering. All shipments are processed from our designated FOB port in India, ensuring timely and secure delivery. Prioritize quality and value with every Rayzon solar panel transaction.

FAQ's of Rayzon solar panels:

Q: How should Rayzon solar panels be installed for optimal performance?

A: Rayzon solar panels should be installed in a location with maximum sun exposure, ideally at a tilt angle corresponding to your region to optimize sunlight absorption and energy output.

Q: What are the key benefits of the IP67-rated junction box in Rayzon panels?

A: The IP67-rated junction box protects the panel's connections from dust and water ingress, ensuring continued performance and longevity in harsh weather conditions.

Q: When is the best time to take advantage of the clearance sale for Rayzon solar panels?

A: This is a Last Chance opportunity, so it's best to act quickly-while stocks last-to obtain these cost-effective, elite solar panels at clearance prices.

Q: Where can Rayzon solar panels be used effectively?

A: Rayzon panels are highly effective for rooftops, commercial installations, solar farms, off-grid setups, and any application requiring durable and reliable solar energy systems.

Q: What is the process for ordering and receiving a sample Rayzon solar panel?

A: You may request a sample for assessment, which will be processed upon confirmation. Once payment terms are agreed, the sample is shipped from our FOB port in India for your evaluation.

Q: How does the high front glass transmittance improve the efficiency of Rayzon panels?

A: The >91% transmittance of the 3.2mm tempered glass allows more sunlight to reach the solar cells, increasing the energy produced and panel efficiency.
